Features

40% faster

High deposition rates
Integrated milling and finishing

25% more productive

Real-time path programming
No additional stations needed
Real-time geometry inspection

30% less expensive

Reducing floor space by a 90%:
Savings on raw materials and energy
Automated measurement and control

How?

Robotics
Robotics
An assembly robot on a crane able to move with 6+3 DoF, covering a large workspace (20x6x5 meters).

CAM systems
CAM systems
Create new CAM algorithms for hybrid manufacturing, including planar horizontal layer strategies and new direct 3D free form approaches.
Real time control
Real time control
Real-time control of tool position, force, speed, temperature, and shape deviations.
Multimaterial 3D printing
Multimaterial 3D printing
Hybrid manufacturing with aluminium grades, up to 10kg/h deposition rates using Additive Metal Hybrid Technology + Hybrid manufacturing with new polymer-based materials (thermoset Epoxy and PUR resins) reaching 180kg/h
Subtractive manufacturing
Subtractive manufacturing
Fast and precise milling for large parts based on climb-up methodology specially designed for the planar layer-by-layer and direct 3d freeform production strategies.

Examples of Application

Waterproof covering modules for tunnels

As part of the tunnel construction process, the installation of a waterproof cover including the electrical conduits of the tunnels could result in a revolutionary alternative to current methods, reducing time and cost.

Aluminium metallic back and front frames

The large area geometrical demonstration will be performed developing part of the BIW of an Alfa Romeo 4C, including two aluminium frames (front and rear) and a carbon fibre composite monocoque in between.

Pininfarina mock-up car design

A manufactured mock-up of a Pininfarina car design will be created using KRAKEN.

Disclaimer: The final physical model manufactured within the KRAKEN Project as a demonstrator of the KRAKEN technology, is inspired by Pininfarina design (which is of Pininfarina’s property) and it cannot be considered as a reproduction of the original one.

Expected Results

The KRAKEN machine

Kraken machine

An affordable solution for production of parts up to 20m long.

Job creation

Implementation and replication, in the short/medium term, of 150 new jobs inside the consortium and 600 in the EU.

Latest News

  • Final project brochure

Final project brochure

2019/10/03|Comments Off on Final project brochure

Read the final project brochure with the latest updates on results. KRAKEN is an EU funded project that has developed an automated, robotic machine for hybrid multi-material manufacturing combining both subtractive and novel additive technologies. [...]

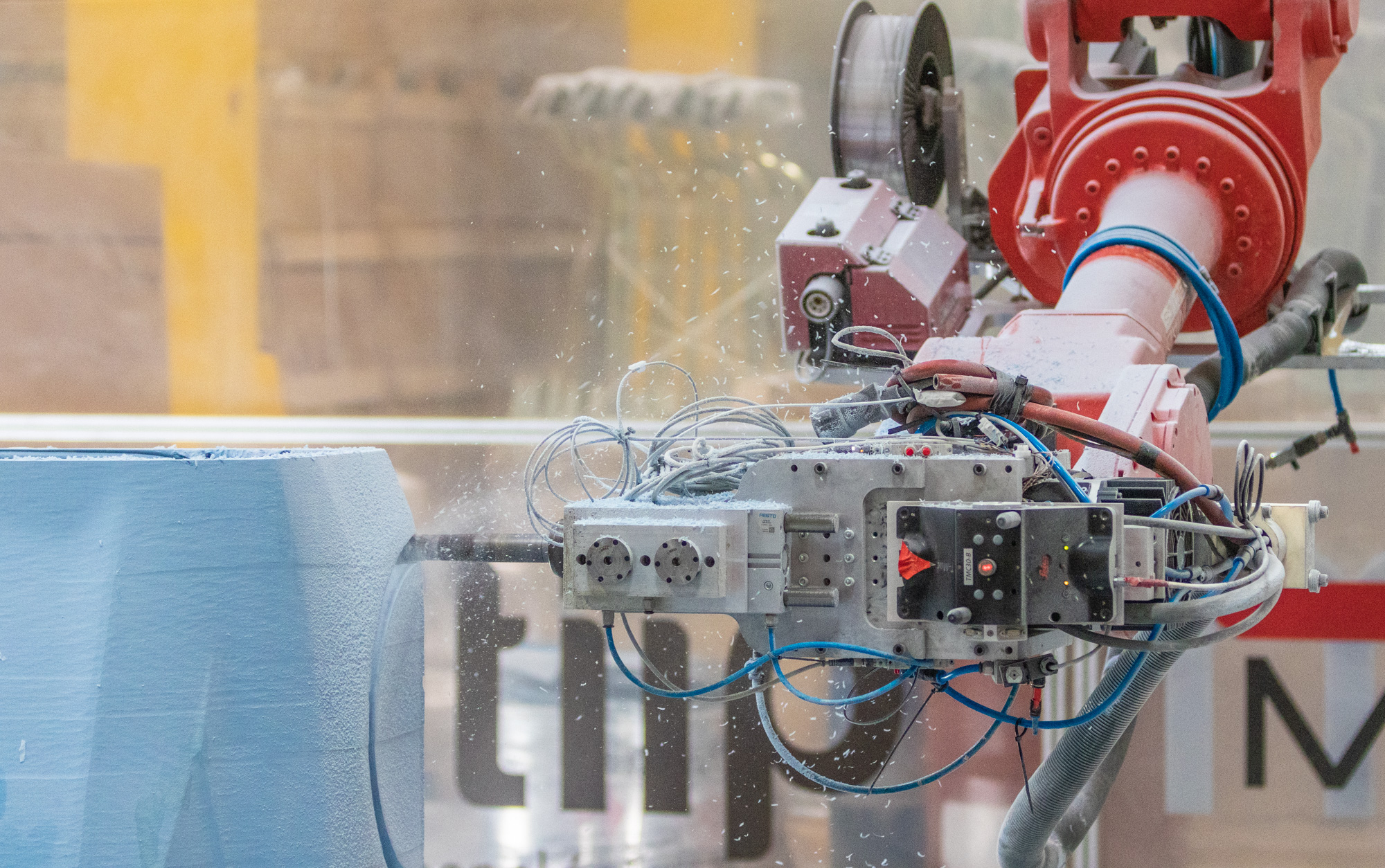

Draft Programme Conference Zaragoza
